SCIENCEWAY MINI STACKER CONVEYOR BELT WITH TIJ PRINTER

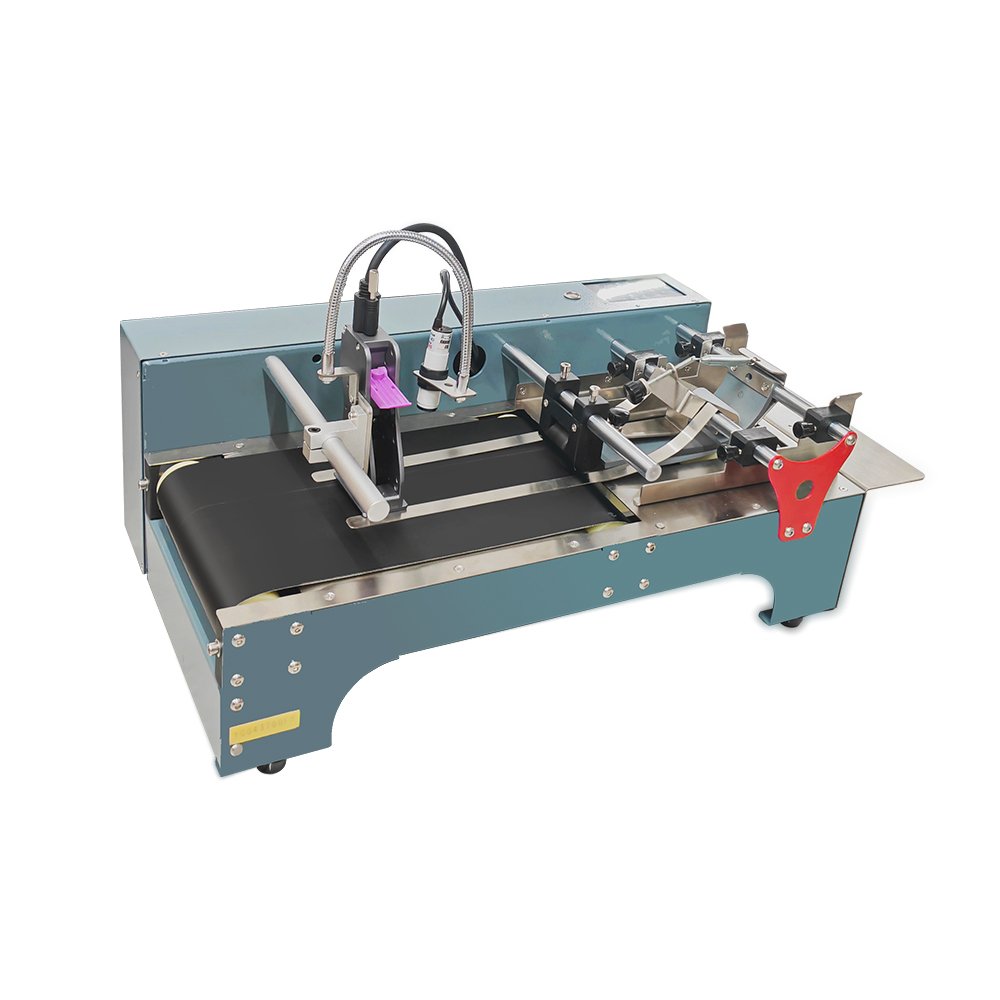

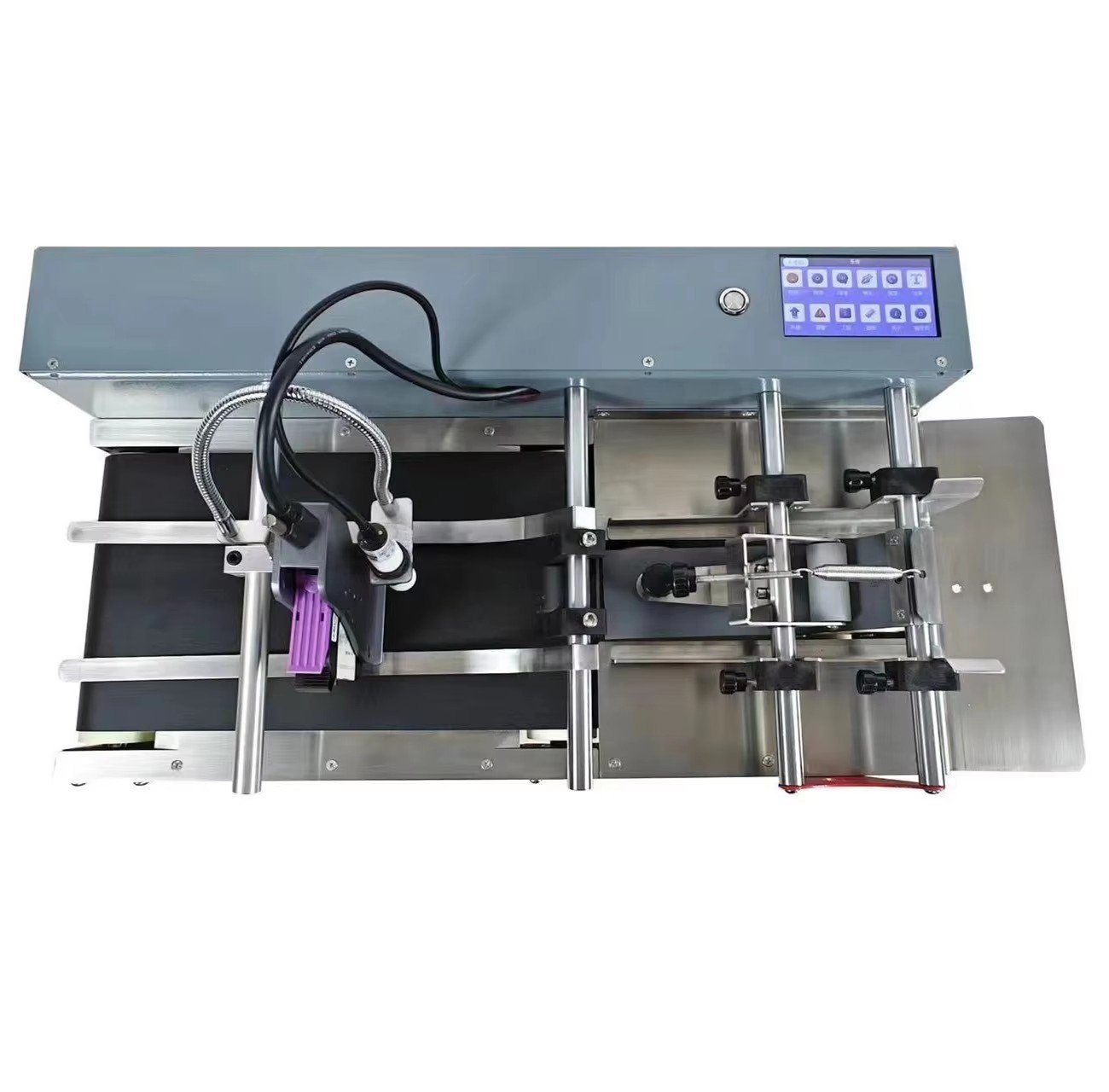

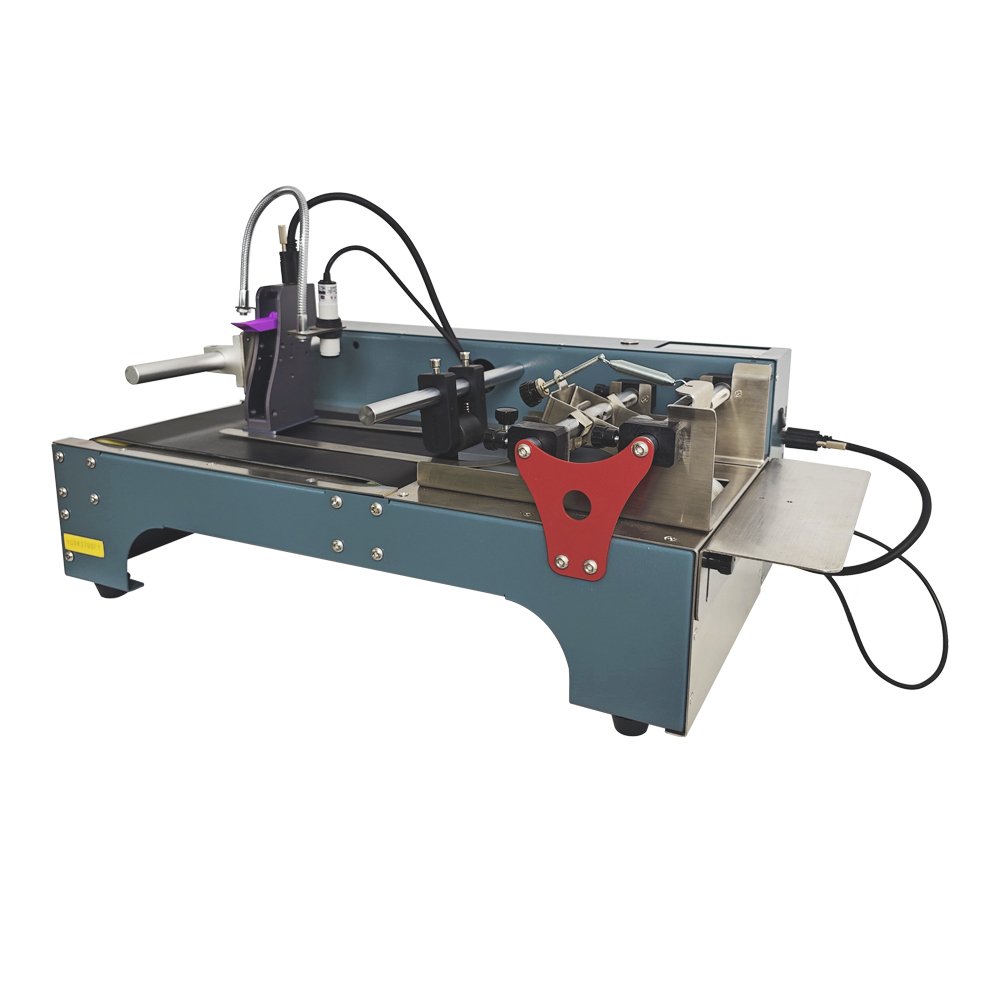

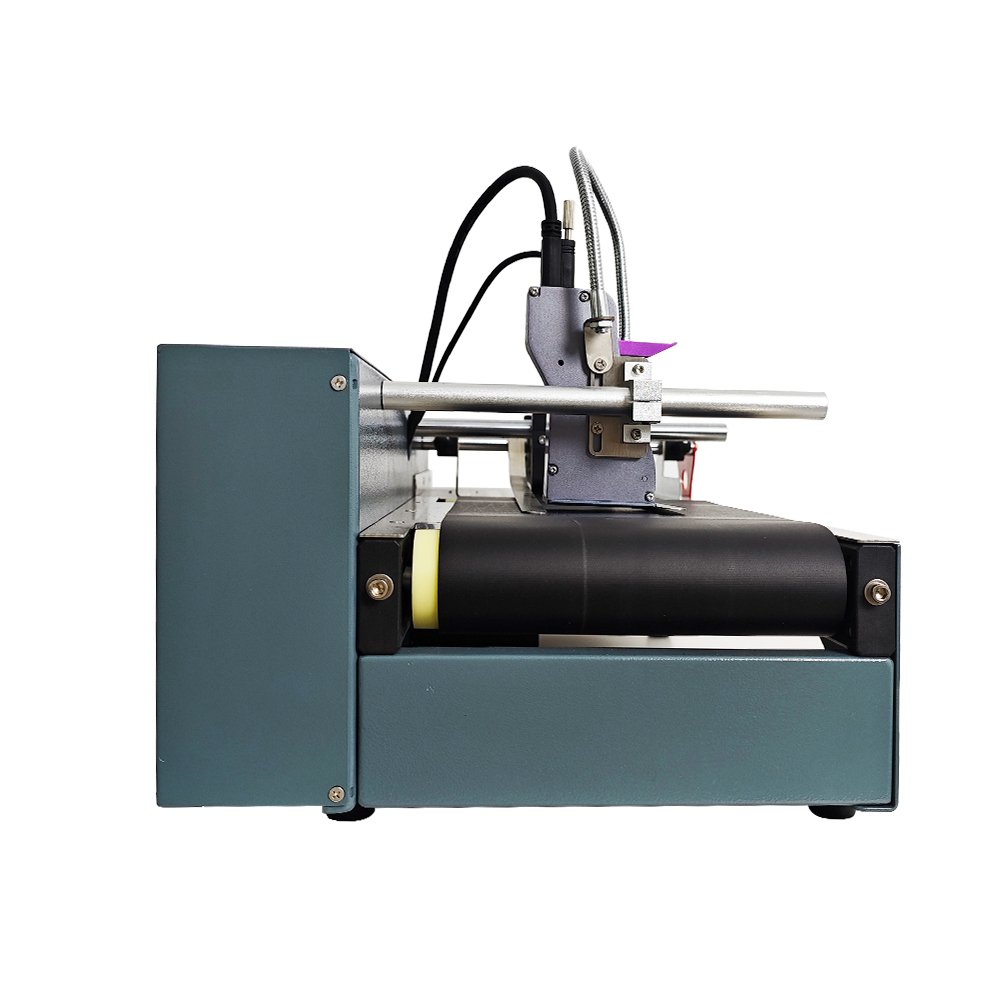

SCIENCEWAY Mini Stacker Conveyor with TIJ Printer is a compact, efficient, and smart packaging solution designed for smooth product handling & high-quality printing.
Product Overview
SCIENCEWAY Mini Stacker Conveyor with TIJ Printer is a compact,
efficient, and smart packaging solution designed for smooth
product handling & high-quality printing.
It combines a mini stacker conveyor for continuous
product movement with a TIJ printer for clear
printing of Date, Batch No., MRP, QR Codes, Barcodes & Logos on a
wide range of packaging materials.
Specifications
| Speed | Up to 60 m/min (Adjustable) |
| Width | 200 mm (Customizable) |
| Length | 1500 mm (Customizable) |
| Load Capacity | 20 kg Max |
| Printer | TIJ Inkjet – High Precision |
| Resolution | 600 DPI Crystal Clear |
| Print Speed | Matches Conveyor (Up to 60 m/min) |
| Print Height | 12.7 mm (Single Head) |
| Ink | Black | White | Yellow | UV | Solvent |

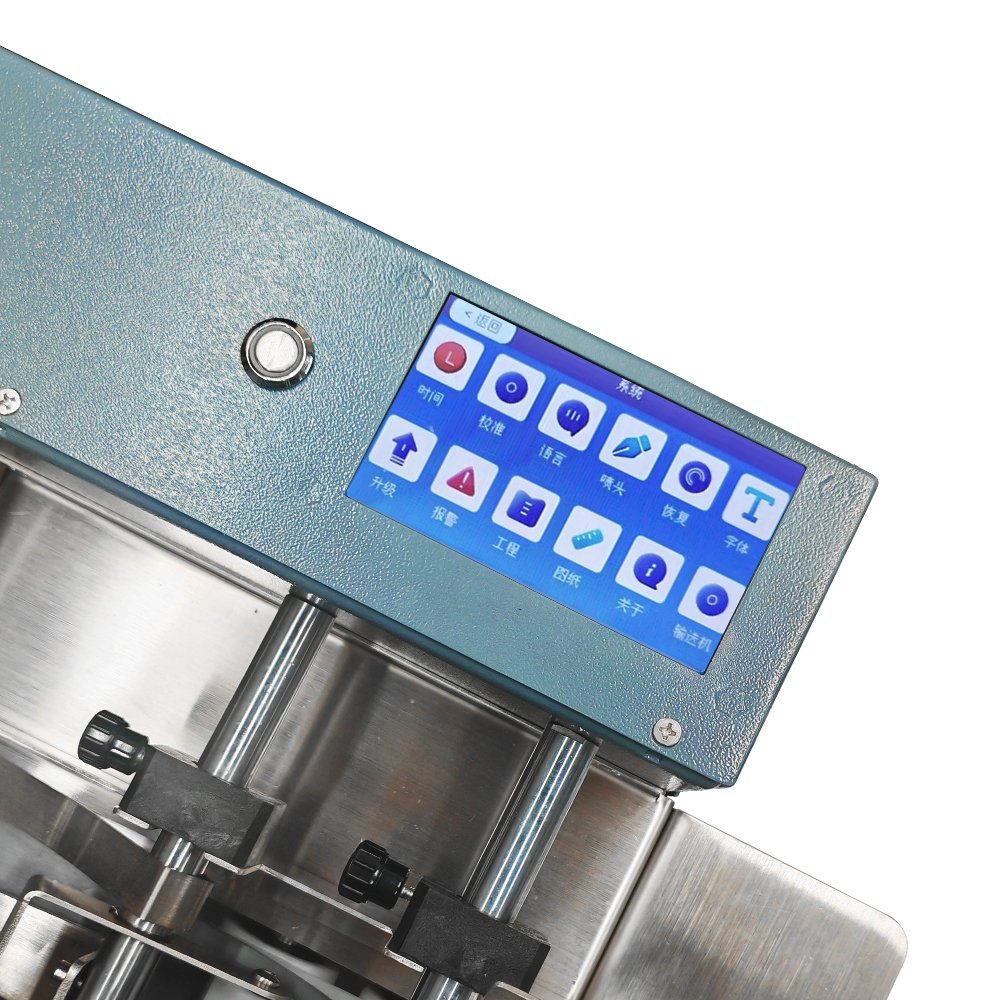

| Control Panel | 5”/7” Smart Touchscreen |
| Connectivity | USB / Wi-Fi (Optional) |
| Power Supply | 220V AC, 50Hz |
| Build | MS Powder Coated / SS Option |
| Applications | Date • Batch • MRP • QR • Barcode • Logo |
