SCIENCEWAY DOUBLE HEAD PASTE FILLER MACHINE 100 TO 1000ML

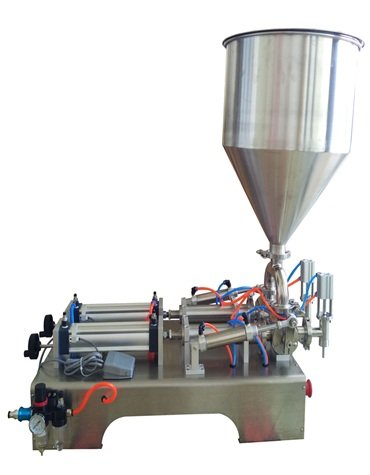

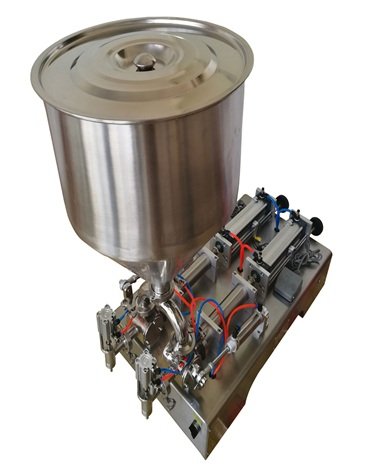

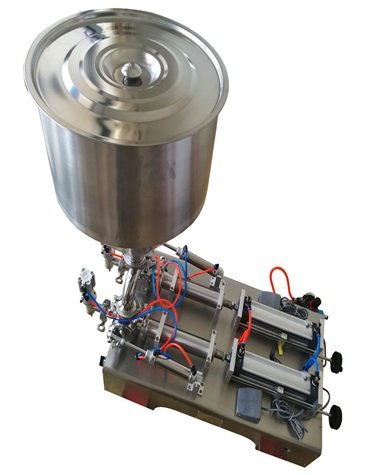

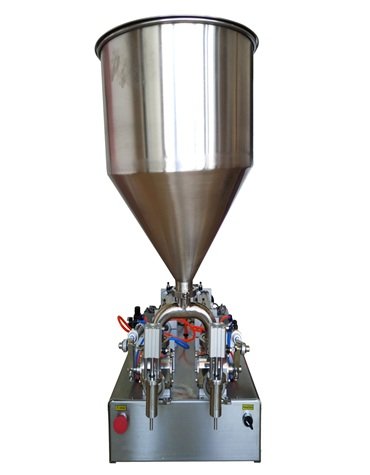

The Double Head Paste Filling Machine (100 ml–1000 ml) is a semi-automatic piston-type filler, equipped with two filling nozzles, enabling simultaneous dispensing into two containers for enhanced production efficiency.
Product Overview
The Double‑Head
Paste Filling Machine (100 ml–1000 ml) is a semi-automatic piston-type
filler, equipped with two filling nozzles, enabling simultaneous
dispensing into two containers for enhanced production efficiency. Designed for
viscous products such as creams, pastes, sauces, shampoos, and
ointments, this machine is widely used across the food, cosmetic,
pharmaceutical, and specialty chemical industries.
Built
with food-grade stainless steel (SS 304) contact surfaces and equipped
with adjustable pistons, it allows accurate filling between 100 ml and
1000 ml per nozzle. Operated pneumatically—with manual foot pedal or
push-button actuation—it delivers consistent results without requiring
significant mechanical complexity. These machines typically offer filling
accuracy of ±1%, anti-drip nozzles for clean operation, and are designed
for easy cleaning and minimal downtime.
Applications
include: honey,
peanut butter, tomato paste, lotion, cosmetics creams, and laboratory-grade
substances—ideal for small to medium batch production lines.
Specifications
| Filling Range | 100–1000 ml per head |
| Heads | Double-head piston-type for simultaneous dual filling |
| Voltage | AC 220 V/50–60 Hz (110 V option available) |
| Air Pressure | 0.4–0.6 MPa (≈ 58–87 psi) |
| Filling Accuracy | ±1 % |
| Filling Speed | 4–30 bottles/min (≈1500/hr) |
| Air Consumption | ≥0.008 m³/s (~28.8 m³/h) |
| Hopper Capacity | ~20–30 L |
| Construction | Stainless steel (SS 304, some contact parts SS 316L), PTFE pistons & seals |
| Machine Weight | ~33 kg (China-made) to ~80 kg (export models) |
| Dimensions (approx.) | 117 × 38 × 35 cm (China version); export ~95 × 42 × 38 cm |
| Control Mode | Pneumatic semi-auto (manual push-button or foot pedal) |
| Accuracy & Sealing | Anti-drip nozzles; optional drip-tight and anti-silk features |
| Compliance | Meets GMP standards; pneumatic components from AirTac/FESTO |
| Optional Features | Explosion-proof version, direct-suction hose instead of hopper |
